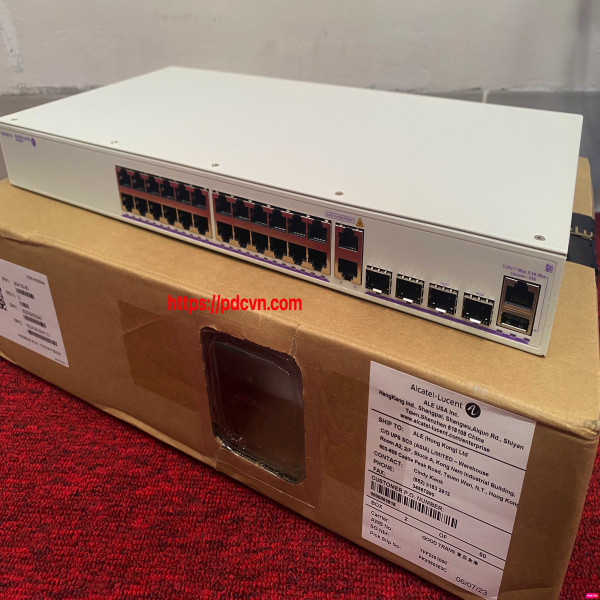

Alcatel-Lucent OmniSwitch OS6360-24

Model

OS6360-24

Gigabit RJ-45 ports

24

Combo Gigabit RJ-45/SFP ports

2

Fixed SFP/SFP+ uplink or VFL ports

2 x SFP+

Console port

1

USB/OoB management port

1

Primary power

Internal

Backup power

N/A

Fans

0

CPU

800MHz ARMv7

File system flash

1 GB

RAM

1 GB

Packet buffers

1.5MB

Performance aggregated

Max switching ASIC capacity

92 Gb/S

Switch capacity with all ports (full duplex + stacking)

92 Gb/s

Switch frame rate @ 64-byte packet

137 Mpps

2x10GE VFL capacity

40 Gb/s

System power consumption:
- Idle
- 100% traffic all ports (max)

10.7 W
24 W

System heat dissipation

82 (BTU/h)

Power consumption w/PoE

N/A

Heat dissipation w/PoE

N/A

Power supply efficiency (max load)

87,30%

Acoustics (dB) @27C*

0 db(A)

# of fans

0

MTBF (hours) @ 25C

2,595 k

Height

4.4 cm (1.73 in)

Width

44 cm (17.33 in)

Depth

22 cm (8.66 in)

Weight

3.1 kg (6.9 lbs)

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

-40°C to 85°C (-40°F to 185°F)

Humidity (operating)

5% to 95% non-condensing
