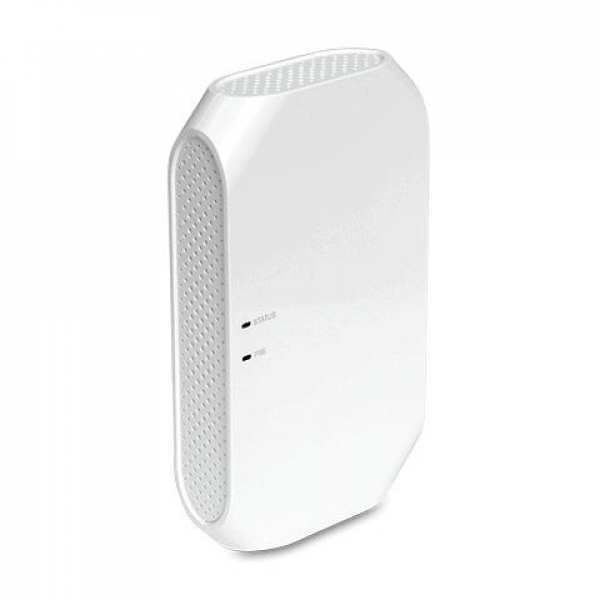

OmniAccess Stellar Access Point 1201H - OAW-AP1201H-RW
0đ
Đặc điểm nổi bật
OmniAccess Stellar AP1201H.
- Dual radio 2x2:2 802.11a/b/g/n/ac MU-MIMO AP, integrated antenna,
- 1 Port GbE uplink,
- 3 Port GbE downlink,
- 1 Port RJ45 passthrough,
- 1 Port USB (opt BLE) and 1x 48V DC power interface.
- Unrestricted Regulatory Domain. These products should be considered as Rest of World products and MUST NOT be used for deployments in the United States, Japan, Israel or Egypt
Cam kết
giá tốt nhất
Nhận đổi trả
trong 30 ngày
Giao hàng
toàn quốc
Thanh toán
khi nhận hàng
Sản phẩm tương tự
-
0đ
Còn hàng
-
0đ
Còn hàng
-
0đ
Còn hàng
Alcatel-Lucent OmniAccess Stellar AP1201H
Indoor Hospitality high-performance 802.11ac Wave 2 access point
Multi-functional Alcatel-Lucent OmniAccess® Stellar AP1201H access point is a highly versatile, and performance rich access point providing operational simplicity and quality user experience. The OmniAccess Stellar AP1201H indoor WiFi access point provides high-performance Gigabit WiFi for in room applications such as hotels, classrooms, dormitories, clinics, remote/home office and more
| Radio specification |
- AP type: Indoor, dual radio, 5 GHz 802.11ac 2x2:2 MU-MIMO, and 2.4 GHz 802.11n 2x2:2 MIMO
- 5 GHz: Two spatial stream multi user MU-MIMO for up to 867 Mb/s wireless data rate, simultaneous data transmission for up to 2 devices
- 2.4 GHz: Two spatial stream single user (SU) MIMO for up to 300 Mb/s wireless data rate to individual 2x2 HT40 client devices
- Supported frequency bands (countryspecific restrictions apply):
+ 2.400 to 2.4835 GHz
+ 5.150 to 5.250 GHz
+ 5.250 to 5.350 GHz
+ 5.470 to 5.725 GHz
+ 5.725 to 5.850 GHz
- Frequencies fixed at factory for Middle East models OAW-AP1201H-ME
+ 2400 - 2483.5 MHz
+ 5150 - 5350 MHz
|
| Interfaces |
- Uplink: 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
- Downlink: 1× 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE-PSE) 802.3af compliant
- Downlink: 2× 10/100/1000Base-T autosensing downlink port
- Passive Pass through one pair, back and bottom
- 1× USB 2.0 (Type A):
+ Capable of supplying up to 5V 500mA power to an attached device; Optional BLE
+ 3G/4G cellular modems
- Reset button: Factory reset
- DC48V power jack
|
| Antenna |
- AP1201H: Built-in 2×2:2 @ 2.4 GHz, 2x2:2 @ 5 GHz
+ Two integrated dual-band omnidirectional antennas for 2x2 MIMO with maximum antenna gain of 4 dBi in 2.4 GHz and 6.3dBi in 5 GHz.
+ 11 W (802.3af PoE with PSE function disabled);
+ 25.5 W (802.3at PoE or DC, USB disabled and full 802.3af PSE);
+ 25.5 W (802.3at PoE, USB enabled and PSE output power max 12 W);
|
| Power |
- Supports direct DC power and Power over Ethernet (PoE)
- When both power sources are available, DC power takes priority over PoE
- Direct DC source:
+ 48 V DC nominal, ± 5%
- Power over Ethernet (PoE):
+ 48 V DC (nominal) 802.3af/ 802.3at compliant source
- Maximum (worst case) power consumption:
+ 11 W (802.3af PoE with PSE function disabled);
+ 25.5 W (802.3at PoE or DC, USB disabled and full 802.3af PSE);
+ 25.5 W (802.3at PoE, USB enabled and PSE output power max 12 W);
|
| IEEE standard |
- IEEE 802.11a/b/g/n/ac Wave 2
- IEEE 802.11e WMM
- IEEE 802.11h, 802.11i, 802.11e QoS
- IEEE 802.1Q (VLAN tagging)
- 802.11k Radio Resource Management
- 802.11v BSS Transition Management
- 802.11r Fast Roaming
- 802.11w Protected Management Frame
|
Download Datasheet OAW-AP1201H-RW
